Your flow computer for your needs

We produce flow computer optional boards. The specifications of these optional boards are laid out here.

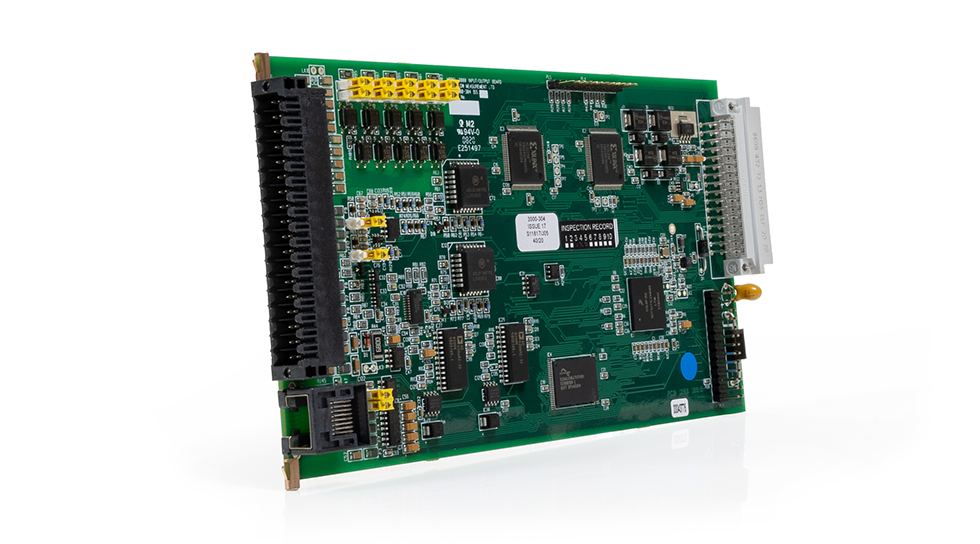

I/O DIGITAL STREAM BOARD (3000-314)

I/O DIGITAL STREAM BOARD (3000-314)
3 Pulse Counting/ Frequency measurement inputs

DC to 5KHz
ISO 6551 or API Chapter 5.5
Applications include

Turbine/Rotary/positive displacement meters
Density and Relative Density meters
Status and detector inputs
2 Switch / Valve Status inputs
2 HART® transmitter loops

Up to 3 transmitters for each loop
Individual Pressure Temperature or DP transmitters
Use with Multivariable transmitter types
1 Direct PRT (4 wire) Input

5 Digital Outputs

Optically isolated Open Collector, 30V max, 10mA
Alarm indication, Telemetry or Valve Control
Output 1 can be used for prover output frequency
2 Analogue Outputs

0-20mA or 4-20mA
16-bit max error 0.15%
Telemetry or PID Control
1 Serial Communication connection

RS232/RS485, speeds up to 38400 baud
Modbus Master/Slave communication to
Ultrasonic and Coriolis meters
Stream Gas Chromatograph & Water Cut Meters
Turbine Meter Encoder

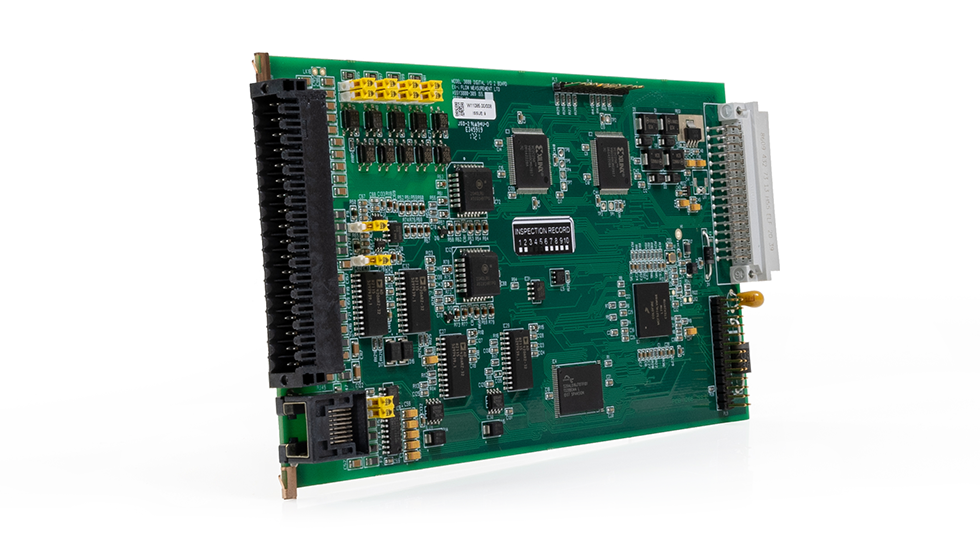

I/O DIGITAL 2 STREAM BOARD (3000-319)

I/O DIGITAL 2 STREAM BOARD (3000-319)
Specification and use as in I/O Digital STREAM BOARD with the following Inputs and Outputs
3 Pulse Counting/ Frequency measurement inputs
1 Switch / Valve Status input
2 HART® transmitter loops
6 Digital Outputs
4 Analogue Outputs
1 Serial Communication connection

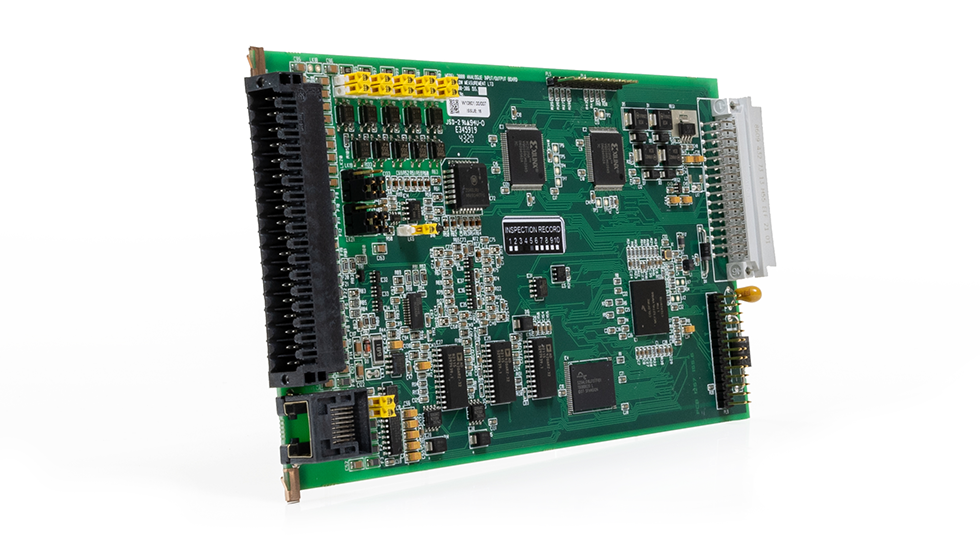

I/O ANALOGUE STREAM BOARD (3000-316)

I/O ANALOGUE STREAM BOARD (3000-316)
Specification and use as in I/O Digital STREAM BOARD with the following Inputs and Outputs
3 Pulse Counting/ Frequency measurement inputs
2 Switch / Valve Status input
1 HART® transmitter loop
3 Analogue 4-20mA Inputs
1 Selectable Analogue 4-20mA Input or Digital Output
1 Direct PRT (4 wire) Input
3 Digital Outputs (Output 1 can be used for prover output frequency)
2 Analogue Outputs
1 Selectable Analogue Output or Digital Output
1 Serial Communication connection

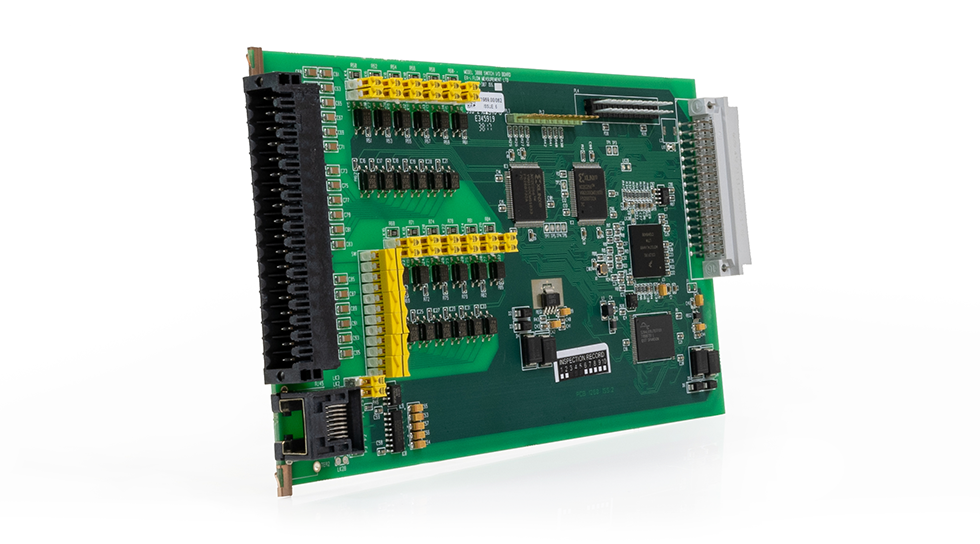

I/O SWITCH STREAM BOARD (3000-317)

I/O SWITCH STREAM BOARD (3000-317)
Specification and use as in I/O Digital STREAM BOARD with the following Inputs and Outputs
3 Pulse Counting/ Frequency measurement inputs
3 Switch / Valve Status inputs
6 Digital Outputs
6 Selectable Digital Status Inputs or Digital Outputs
1 Serial Communication connection

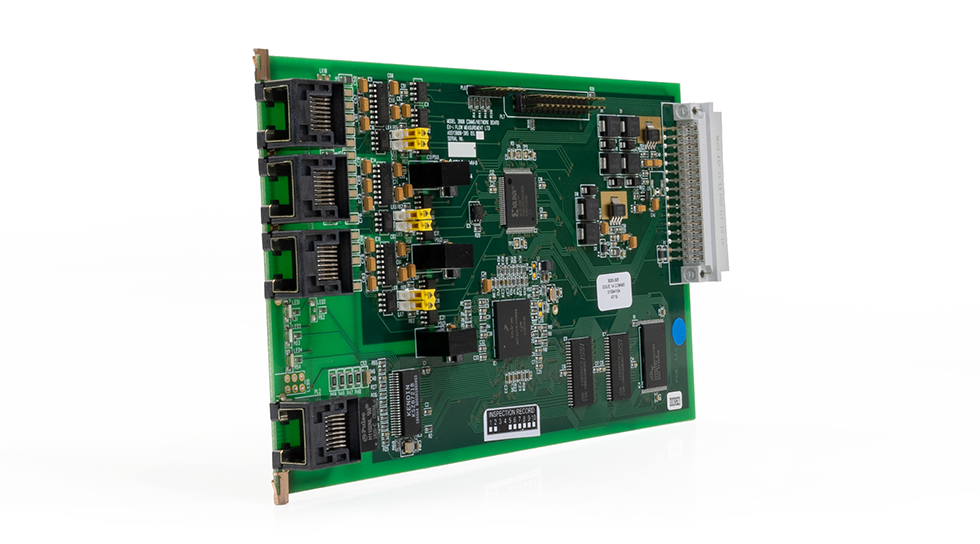

COMMUNICATION BOARD (3000-305)

COMMUNICATION BOARD (3000-305)
3 Serial Communication ports

RS232 or RS485, speeds up to 38400 baud
RS485 Termination network
Galvanically isolated
RJ 45 style Connectors
Fully user programmable and configurable
Modbus Master/Slave ASCII/RTU
Supervisory, DCS or RTU systems
Serial Printer with handshaking (1 port)
Ethernet Port

10/100Base LAN port
Fully user configurable and programmable
RJ 45 style connector with integrated indicators
Modbus master and slave over TCP/IP communication
Remote operation with diagnostics and configuration
Web Server functions
Network Time Protocol
Network to other SFC3000 machines
Network to other measurement devices
Network Printing

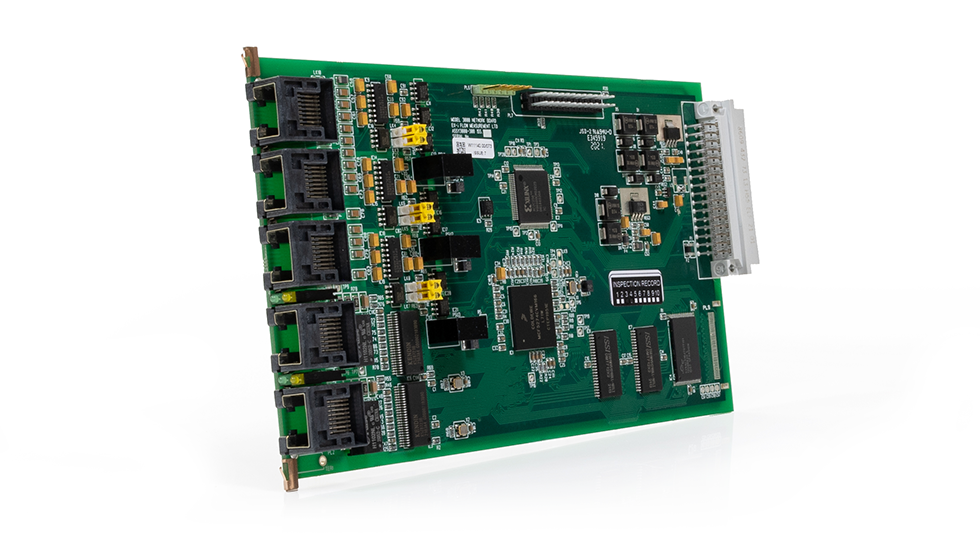

DUAL NETWORK BOARD (3000-318)

DUAL NETWORK BOARD (3000-318)
Specification and use as in COMMUNICATION BOARD with the following Inputs and Outputs
3 Serial Communication ports
2 Ethernet Ports

If you are interested in learning more about our flow computer optional boards, contact our team today.
